Product Description:

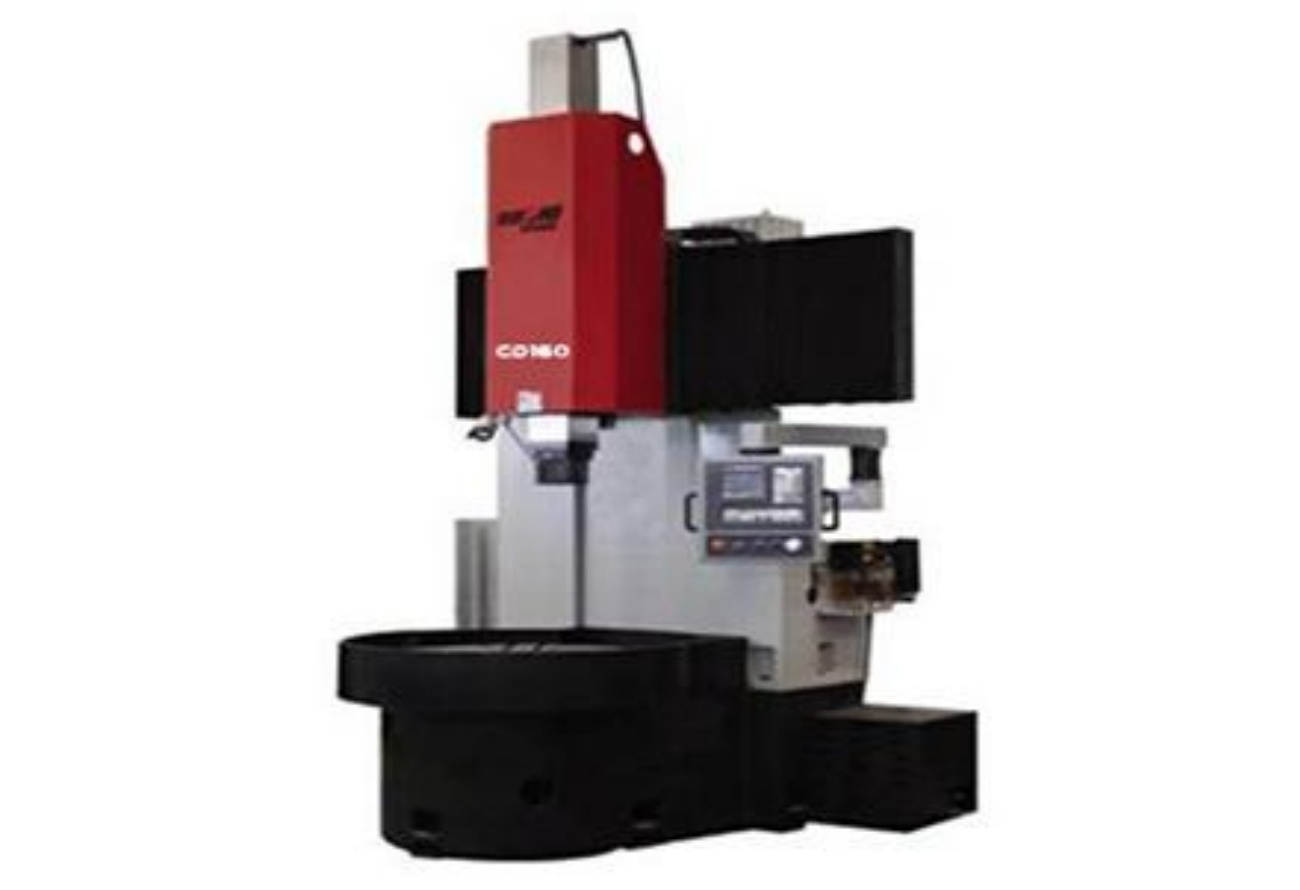

CD160 is a CNC vertical lathe with the main structure of base and single column structure, adopting the structure of worktable, fixed beam, square ram and single tool holder, equipped with simple protection and cooling device, it is a high rigidity and high cost-effective economical CNC vertical lathe, which can be used to turn all kinds of internal and external cylindrical surfaces, conical surfaces, arc surfaces and other machining, and is especially suitable for the processing of electric motor shells, large and medium-sized disk bushings, caps and other It is especially suitable for the processing of motor shell, large and medium-sized disk sleeve, cover and other parts. Suitable for electromechanical, automobile, wind power, engineering machinery and other industries.

Technical Specifications:


Item

technical parameter

Capacity









work table diameter mm

1400

Max. rotation diameter mm

Φ1600

Max. turning diameter mm

Φ1600

Max. workpiece length mm

500/900 (elevated column)

Max. Workpiece Weight kg

4000

work table





Work table speed r/min

5-150

Max. torque of workbench inN.m

6300

Power of main motor (cont./30min) kW

22/30





Feed











X-axis Travel distance mm

900

Travel distance mm

500/900 (elevated column)

Rapid movement speed X/Z m/min

10/10

Servo motor torque X/Z Nm

27/27

Servo motor power X/Z kW

4.2/4.2

Ball screw diameter X/Z mm

Φ50/Φ50

turret



Number of stations

3 (Simultaneously 2)

Tool size mm

32X32

other





Power supply kVA

35

Volume (length x width x height) mm

3300×3200×3400/

3205X2328X4060 (elevated column, elevated protection)

Total weight kg

13000/14000 (elevated pillars, elevated protection)
